Detalhes do produto:
Condições de Pagamento e Envio:
|
| Espessura da folha: | 0,05 mm | Tamanho em mm*mm: | 900*1500 |
|---|---|---|---|
| Superfície tratada: | Anodizado | Aplicativo: | Usina Nuclear |
| Nome do produto: | absorvedor de energia | Grossura: | 25 milímetros ou personalizado |

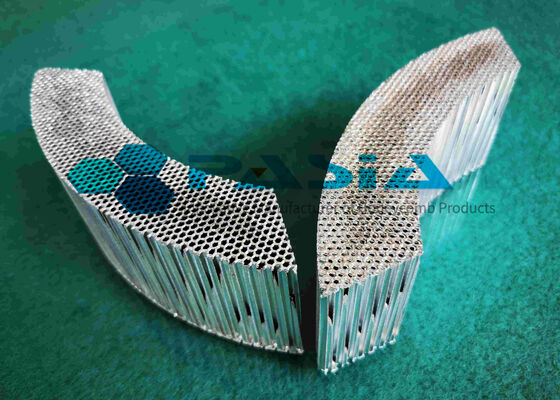

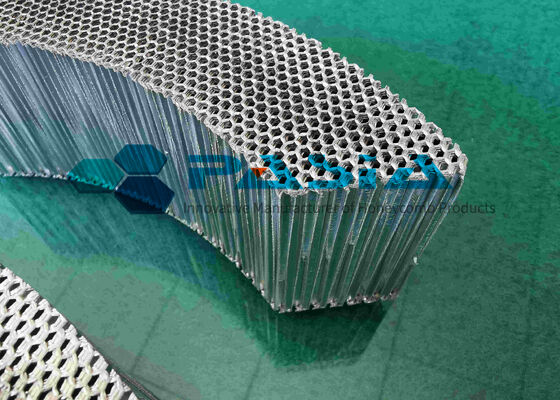

Custom Honeycomb Energy Absorber – Automotive, Aerospace, Rail | China Factory
Pasia Industries, as a leading manufacturer of honeycomb energy absorbers, specialize in producing high-performance aluminum honeycomb cores that convert kinetic energy into controlled, predictable crushing forces. Our honeycomb energy absorbers deliver an exceptional crush strength-to-weight ratio, making them the preferred choice for automotive crash test barriers, aerospace impact zones, rail safety buffers, and defense-grade blast mitigation systems. With customizable cell sizes (0.125″–0.75″), foil thicknesses, and crush strength ranges (0.175–55MPa), we engineer energy absorbers that meet your exact application requirements. Pasia has the capacity of OEM and ODM for clients.
Why Honeycomb Energy Absorbers?
· Predictable Crush Profile – Aluminum honeycomb delivers a uniform, linear force curve with consistent load absorption throughout the crush stroke. Cells collapse and buckle on themselves in a controlled manner, providing engineers with reliable data for safety system design.
· Superior Strength-to-Weight Ratio – With up to 95% open space, honeycomb offers the highest crush strength per unit weight of any energy-absorbing material. This lightweight characteristic reduces overall system mass while maintaining structural integrity—critical for aerospace, transportation, and defense applications.
· Minimal Rebound & Long Crush Stroke – Unlike foam or rubber-based absorbers, aluminum honeycomb exhibits virtually no rebound, converting all impact energy into plastic deformation. Extended crush zones reduce peak forces transferred to protected structures, minimizing damage during high-energy collisions.
· Fully Customizable – By varying alloy type, foil thickness, cell size, and core density, we can tune crush strength from 0.175MPa to 55MPa to match your specific load and impact requirements. Pre-crushed options are available to eliminate peak loading.
· Cost-Effective & Recyclable – Aluminum honeycomb is not only efficient in energy management but also lightweight, corrosion-resistant, and 100% recyclable—supporting sustainable engineering practices.
Applications including:
Motorsport
After the protection of the finished honeycomb energy absorber, the impact energy that occurs during a race can be mainly absorbed during the further frizzling of the core so that the vehicle and the occupants on it are properly protected. It is also the absorber that can be successfully used to keep the fuel tank safety from impact.
Commercial
Customized absorbers can be supplied as impact protection for columns, racks and corners in warehouses and material handling facilities as well as many other applications.
Nuclear
Pasia Honeycomb energy absorbers can be used as a protection against unplanned incidents for the nuclear related applications such as nuclear power plant, material transportation etc..
Rail
The products are typical applied in the rail industry include energy absorbing boxes for driver compartments and anti-climbers, the train head protection etc.
Shipping Protection
Pasia Aluminum Honeycomb energy absorbers can protect fragile products with minimal impact on the shipping weight from possible crushing.
Application Case – Rail Transit Energy Absorption
For a high-speed rail project in Southeast Asia, we designed a custom honeycomb energy absorber integrated into the train front cowcatcher assembly. The solution delivered a crush stroke of 152mm with peak load capped at 480kN, successfully meeting GB/T 21563 impact standards while reducing component weight by 28% compared to conventional steel-buffer designs.
Specifications:
Pasia Honeycomb Energy Absorbers can be supplied based on the cell size, foil thickness and layer, aluminum grade, width and length etc. The shape and parts can be also customized as per the request from client. The crush strength can be achieved on the performance of the foil thickness and special structure.
| Density Range (pound per cubic foot) | Cell size range (diameter inch) | Alloy | Foil thickness (mm) | Foil layers |
| 1-10 | 1/8, 1/4, 3/8, 3/4, 3/16 etc | 3003/5052 | 0.04, 0.05, 0.06, 0.08, 0.1 | Single, double or triple |
| Sample Lot | Specification | D1.5-(0.05+0.05)-3003 | |
| Client | Standard | ||
| Required Value | Conclusion | Plain Crushing Strength: 9.6MPa | |
| Tested By | Time |
Testing Item: Aluminum Honeycomb Plain Crushing Strength
Testing Data
| Serial | Sample Name | Width(mm) | Length(mm) | Maximum Loading(N) | Crushing Strength(MPa) |
| Aluminum Honeycomb Core | 49.0 | 48.0 | 27487.99 | 9.70 | |
| Aluminum Honeycomb Core | 50.0 | 48.0 | 31790.69 | 9.57 | |
| Aluminum Honeycomb Core | 48.0 | 48.0 | 24778.45 | 9.59 | |
| Aluminum Honeycomb Core | 48.0 | 50.0 | 30205.60 | 9.52 | |
| Max Value | 50.0 | 50.0 | 31790.69 | 9.70 | |
| Min Value | 48.0 | 48.0 | 24778.45 | 9.52 | |
| X-bar | 48.8 | 48.5 | 28565.68 | 9.60 |
Testing Curve:
